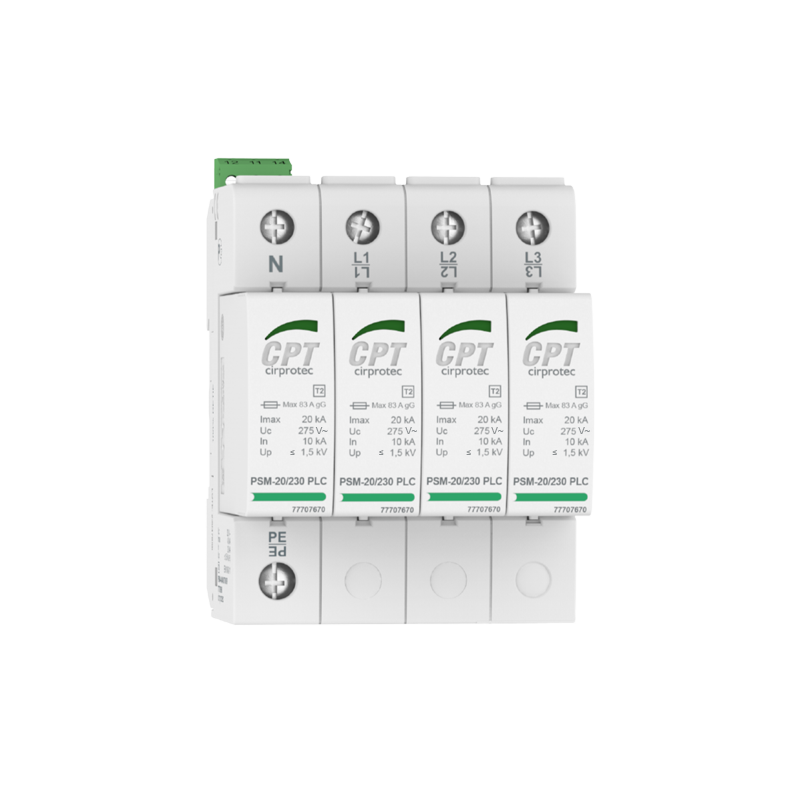

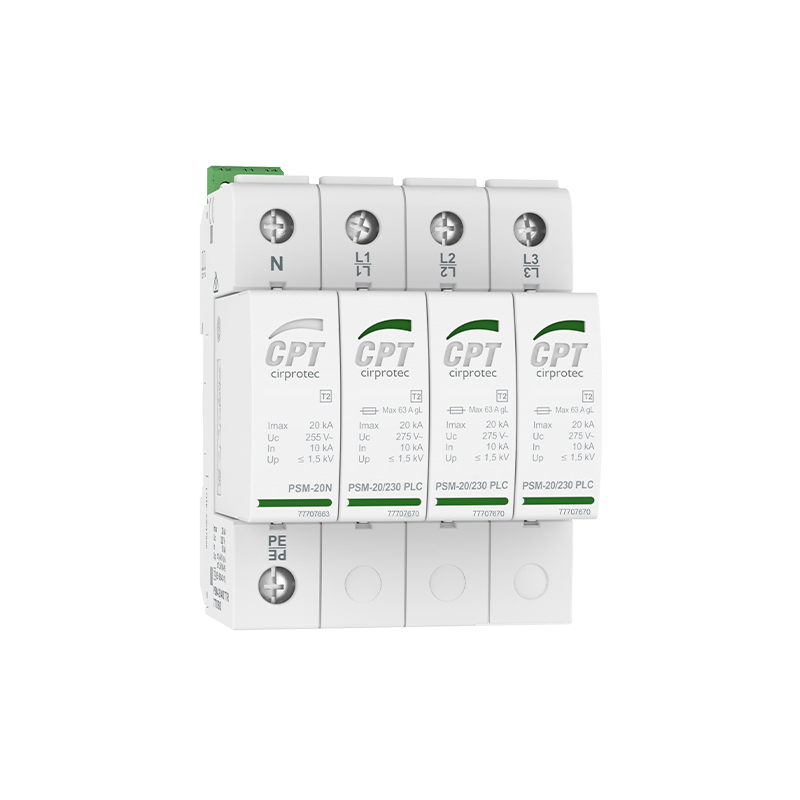

PSM 20 PLC

Power Line SPDs - DIN RAIL - IEC TYPE 2+3

PSM 20 PLC is the range of devices for discharging induced transient overvoltages (Type 2+3 / Class II+III). DIN rail plug-in format. Compatible with PLC (Power Line Communication networks).

Features

* Suitable for the second stage of protection in supply distribution panels in which Type 1 protection devices are installed, or for the first stage of protection in residential, commercial or other applications not exposed to direct strikes and with no external lightning protection system.
* High discharge capacity with an 8/20 μs waveform. Imax: 20 kA.
* Exclusive devices for TNS, TNC, TT. 120/208 V, 230/400 V, 277/480 V networks.
* Exclusive devices which are compatible with Power Line Communication (PLC) networks.
* Reversible chassis to allow cable entry from above or below.
* Mechanically polarized cartridges depending on the network voltage, to avoid possible cartridge replacement errors.
* Biconnect - two types of terminal: for rigid or flexible cable and for fork type comb busbar. *Compatible with PLC (Power Line Communication networks).

Standards and Certifications

IEC 61643-11; EN 61643-11

iec.svg;ce.svg;rohs.svg;ukca.svg;rcm.svg;weee.svg

Applications

Building
Industry
Telecom
Water treatment
DS-PSM-20-PLC-1+1-EN.pdf;DS-PSM-20-PLC-3+0-EN.pdf;DS-PSM-20-PLC-3+1-EN.pdf;DS-PSM-20-PLC-4+0-EN.pdf
BR-brochure-surge-protection-Cirprotec-EN-50080278v2.pdf
INS-PSM-20-PLC-1+1-Cirprotec.pdf;INS-PSM-20-PLC-3+0-Cirprotec.pdf;INS-PSM-20-PLC-3+1-Cirprotec.pdf;INS-PSM-20-PLC-4+0-Cirprotec.pdf
